Industrial paint and powder coating spray booth at Northstar Steel Fabricating

PAINT / COATING

Two dedicated paint facilities providing powder coating and wet spray solutions for projects of any shape or size.

TWO FACILITIES. COMPLETE COVERAGE.

Northstar Steel Fabricating operates two paint facilities to meet our customers' needs. We provide paint and powder coating solutions for all projects no matter the shape or size — from small precision components to large structural weldments.

Facility 1

Powder Coating

Process:HDLV (high-density powder, low-velocity)

Hoppers:Five fluidized hoppers

Powder Booth:10' × 10' × 12'

Curing Oven:8' × 8' × 20' (wet or powder)

Powder Types:Polyester, epoxy, and hybrid

Wet Spray

Processes:HVLP, airless, and compliant

Spray Booth:24' × 16' × 13' with 2-ton hoist

Coating Types:Epoxy, Polyurethane, Polysiloxane, Zinc (Inorganic/Organic)

Facility 2

Wet Spray

Processes:HVLP, airless, and compliant

Spray Booth:60' × 25' × 14'

Coating Types:Epoxy, Polyurethane, Polysiloxane, Zinc (Inorganic/Organic)

INSPECTION

Every coating application is verified to ensure adhesion, thickness, and finish quality meet specification requirements.

Adhesion Tape Test

ASTM D3359

Cross-cut tape test to evaluate the adhesion of coating films to substrates.

Portable Pull-Off Adhesion Test

ASTM D4541

Measures the force required to pull a coating free from its substrate — quantifies adhesion strength.

Dry Film Thickness (DFT)

Measures the cured coating thickness to verify compliance with specification requirements.

We are able to handle virtually any size weldment. See our Material Handling page for details.

View Material Handling

OUR FACILITIES

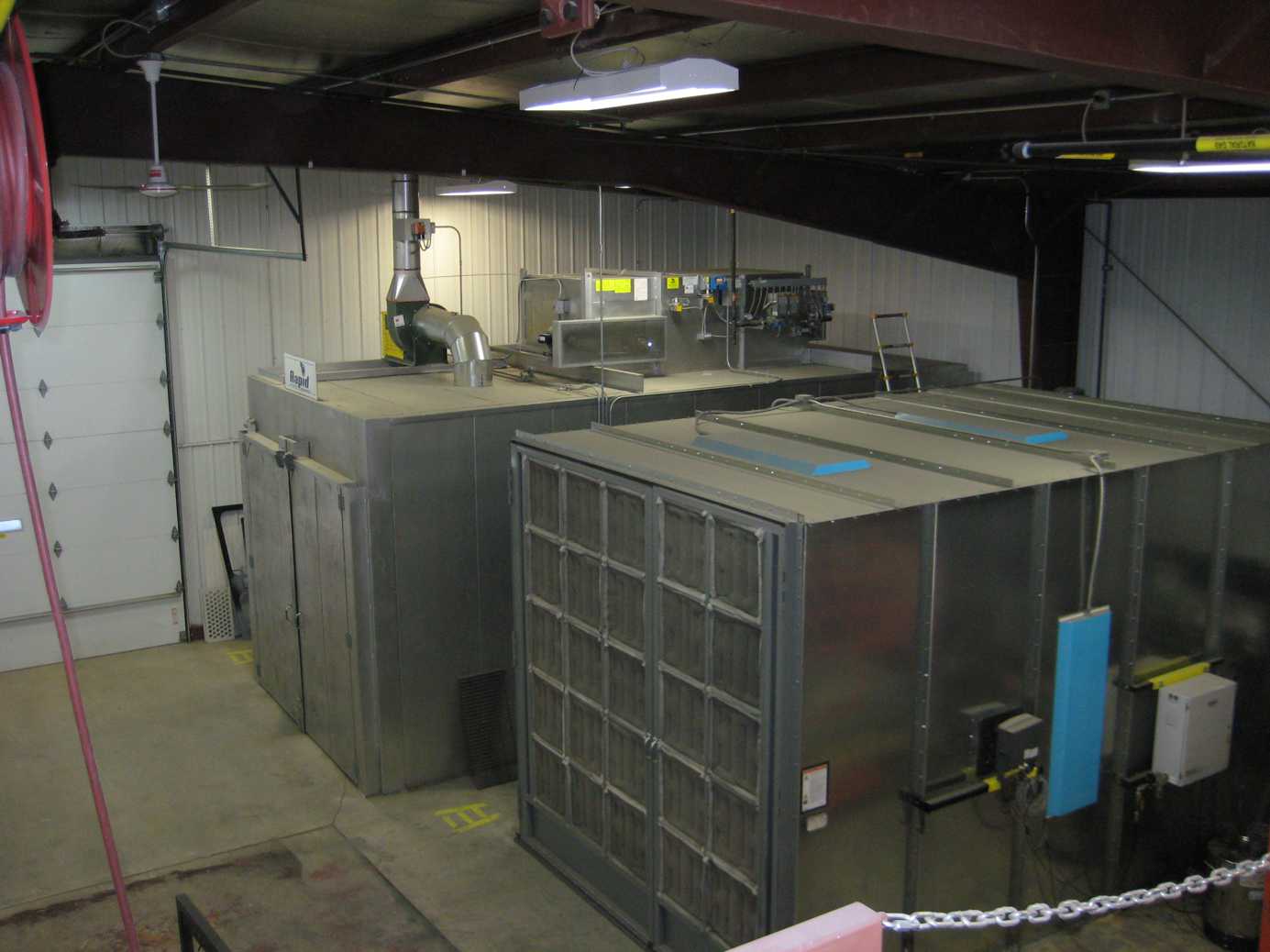

Powder coating oven and equipment at Northstar Steel Fabricating

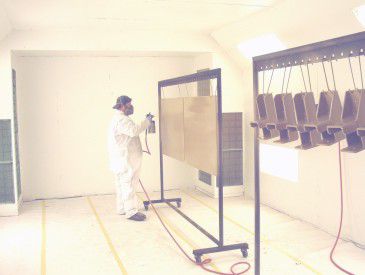

Painter applying wet spray coating in paint booth at Northstar Steel Fabricating

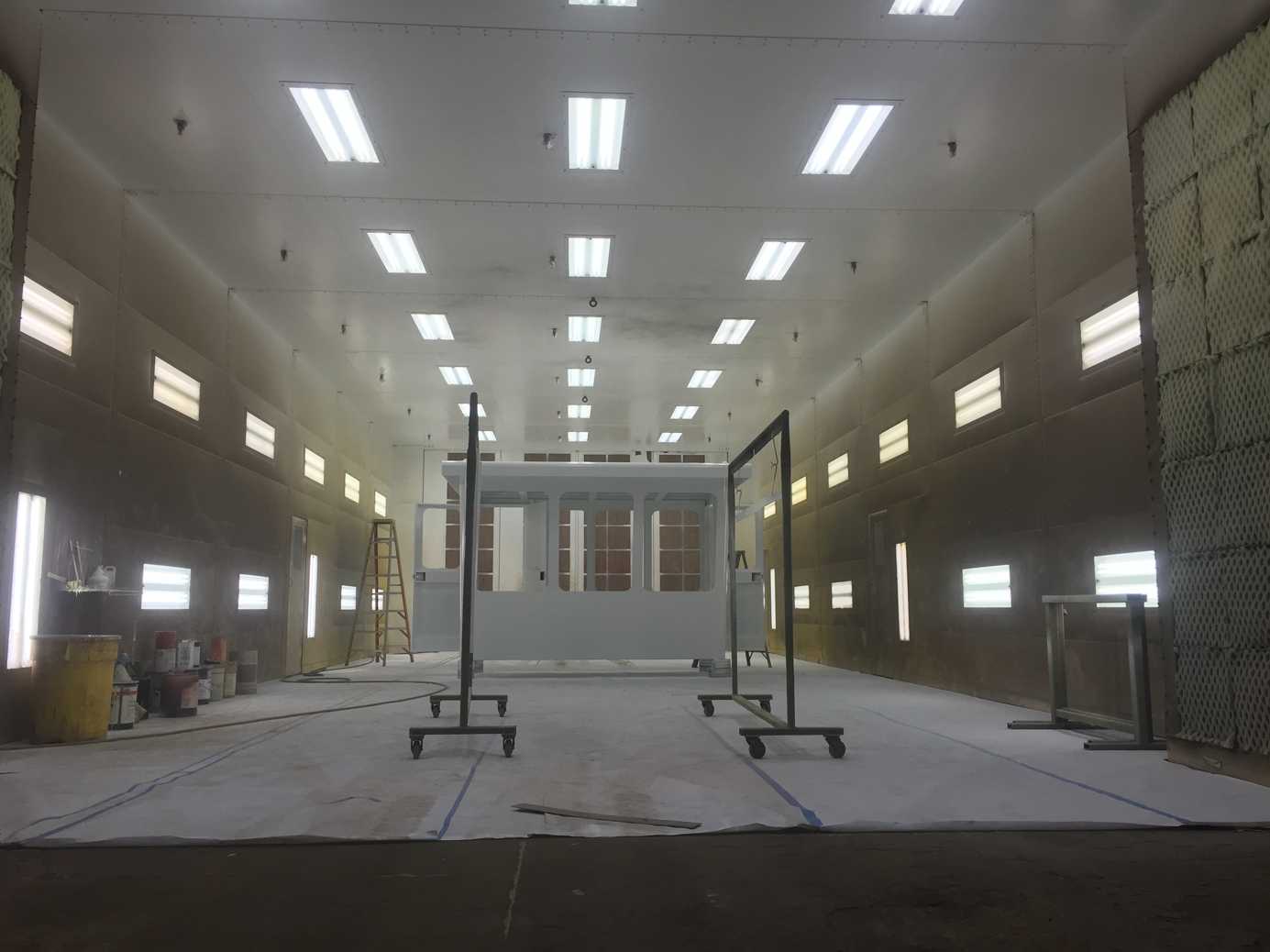

Large 60x25x14 paint booth interior at Northstar Steel Fabricating Facility 2

READY TO DISCUSS YOUR PROJECT?

Contact our team to discuss your paint and coating requirements. We'll match the right process and facility to your project specifications.
